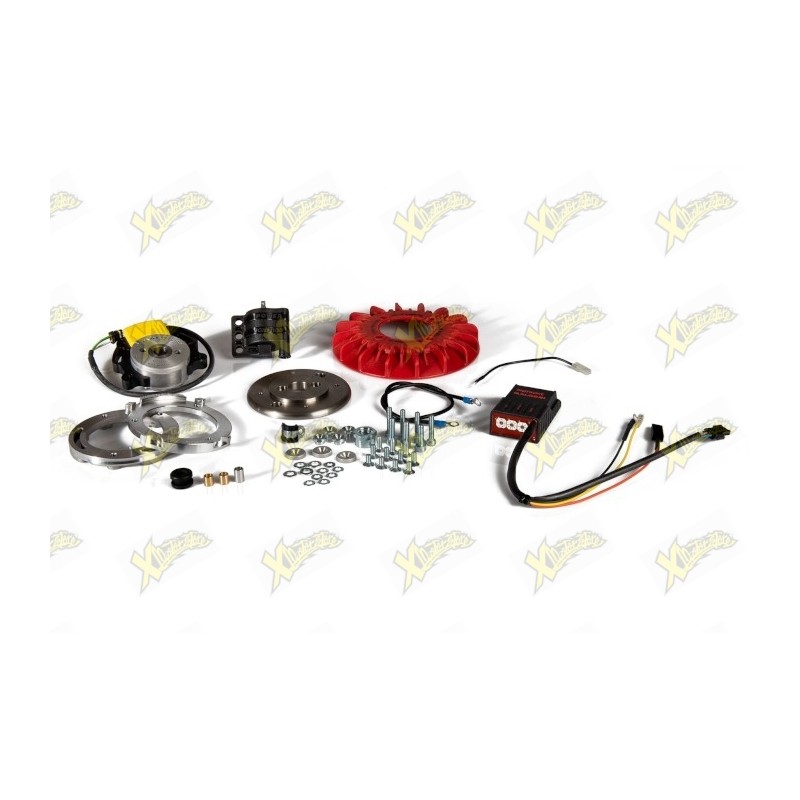

Malossi ignition with cone diameter 20 mm 5519635
Code: 5519635
Malossi ignition with internal rotor Mhr Team II with cone diameter 20 mm
ATTENTION: with this type of ignition the vehicle's electrical system is excluded.
The MHR Team II range is equipped with a non-remappable variable advance control unit with 3 trimmers:
the first (MAPS) to determine the selection of the advance map
the second (OFFSET) allows to move the selected map + or - 2 °
the third (LIM) indicated especially for 4-stroke engines, allows you to vary the intervention of the rev limiter (from 11,500 to 14,300 Rpm + limiter excluded)
It is also equipped with 8 preset mappings which are divided into:
-7 for 2T engines variable advance
-1 with fixed advance
High voltage coil
- Maximum discharge voltage> 40 KV for engine rotation speeds> 3000 Rpm
- Maximum peak open gap coil voltage> 50KV
-Rise time @ 10bar> 1750V / uS
Rotor-stator group
- Weight reduction of the stator part of about 30%, total -100gr.
- High permeability monolithic magnetic circuit.
-Optimization of the magnetic path.
- Strengthening of the wound part, with a cable of higher thermal class and an increase in the diameter of the wire.
-Electric efficiency improved by + 20%.
-Reduction of the minimum starting speed from 450 Rpm to 370 Rpm.
- Miniature waterproof connector, IP67 certified, with retention lock.
-Automotive class wiring.
-Rotor Ø 58 with permanent Neodymium magnets.
Malossi ignition compatible with:
5519635 INTERNAL ROTOR IGNITION MALOSSI PIAGGIO VESPA ETS 125
5519635 INTERNAL ROTOR IGNITION MALOSSI PIAGGIO VESPA PK - ET3 Primavera 125 2T
5519635 INTERNAL ROTOR IGNITION MALOSSI PIAGGIO VESPA PK XL 125
5519635 INTERNAL ROTOR IGNITION MALOSSI PIAGGIO VESPA PK 125
5519635 INTERNAL ROTOR IGNITION MALOSSI PIAGGIO VESPA PK FL 125
5519635 INTERNAL ROTOR IGNITION MALOSSI PIAGGIO VESPA Primavera 125 2T
